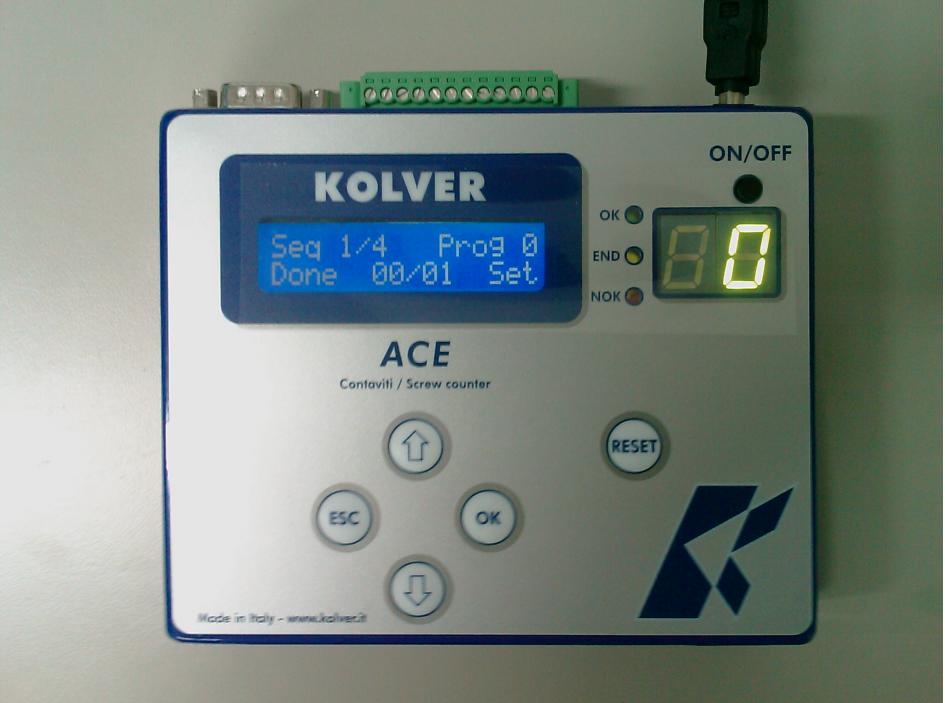

The
ACE
screw
counter
is a
process
control
system
that
monitors
the
fastening
assembly
process.
It
tracks,
in
real
time,
the
fastening
of
each
screw
in
an
assembly,
then
notifies
the
result.
It
keeps
a
summary
of
good
and
complete
assemblies
as
well
as
of
bad
and
incomplete
ones
throughout
the
production
day.
The
ACE
is
easily
programmed
with
user
interface
screens
through
the
keypad.
Walk
through
a
few
simple
steps
to
input
the
parameters
for
total
number
of
fasteners
required
in a
completed
assembly
and
the
fastening
process
can
begin.
The
unit
gives
the
operator
audible
and
visual
indications
that
the
assembly
has
been
completed
without
error
and
it
is
safe
to
move
on
to
the
next
process
step
or
if
it
has
been
rejected.
• To
be
connected
to
EDU..BR/SG
or
EDU1AE,
code
020022
or
to
EDU1FR/SG,
code
020021
•
ACE
includes
the
screw
counter
+
cable
for
connection
to
the
control
unit
• 8
indipendet
programs
• 4
different
programs
can
be
stored
and
run
in
automatic
sequence
•
Separate
displays
for
parameters
setting
and
fasteners
count
• OK
&
Error
lights
•
Program
Min
and
Max
fastening
time
•
I/O
signals
•
Password
protected
•
Wall
mountable
|
